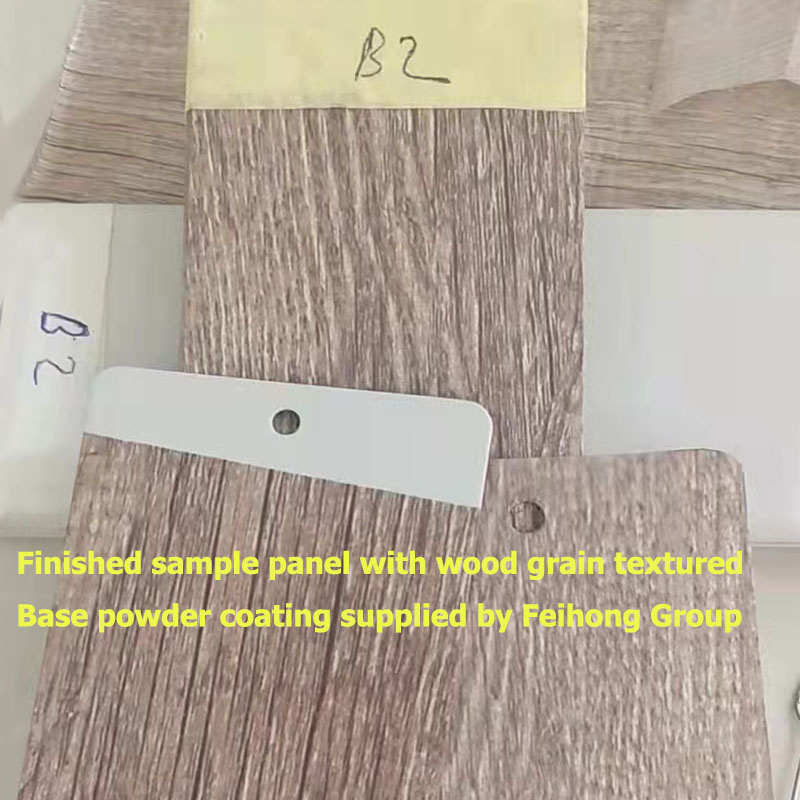

High Quality Heat Transfer Sublimation Base Powder Coating With
Colorful Wood Grain for Aluminium Profiles
Heat transfer wood effect powder coating is widely used for coating
wood effect to Aluminum Profiles, Metal Furnitures and other area
require for anticorrosion, tough, durable, and environmentally
friendly properities.
Description
- Sublimation powder coating is also called Heat Transfer Powder
Coating because of the process of heat transfer printing.This
process is a sublimation process,which is a phisycal-chemical
transition of a pattern from transfer paper or film to a substrate
which is pre-coated with a special powder designed to be as the
base color of this sublimation.
- Through this sublimation process countless effects and patterns
such as wood grain,stone finishes, marble, granite, fancies, even
pictures can be transferred on substrate surfaces.
- This series is available in a variety of color, gloss, finishes and
shapes.
- The coating is flexible and non-sticky paper, so that the
prefabricated steel could be coated with this products before
post-forming.
Sublimation Process
The sublimation process offers the ability to present one material
as another using powder coating.
With sublimation you can apply almost any pattern onto a base coat
of powder coating to transform the appearance of an object.
A typical sublimation process would be;
Appropriate pre-treatment for the substrate.
Apply a sublimation powder coating.
Cure the sublimation powder coating.
The powder coating works as a base layer for sublimation ink to be
transferred into.
Once the powder coating has cooled the item is then wrapped with
transfer film. Air will be vacuumed from inside in order to make
the film perfectly adhere to the object.
Film wrapped and vacuumed items are then cured in an oven where the
sublimation inks are transferred from the film into the powder
coated items.
After the curing is complete the items are removed from the oven.
The transfer film is removed from the powder coating.
The items are now fully decorated and ready for any further actions
(e.g. cutting, assembly, post-forming or packing).
Benefits of Sublimation:
Offers amazing decoration and improved mechanical performance for
the substrate.
Excellent aesthetic appearance.
Minimum maintenance of the finish.
COLORS AVAILABLE
- RAL colors coating powder
- Pantone colors
- Color-matching is available
GENERAL TYPES
- Polyester /Hybrid powder coating color
- Epoxy Powder coating color
- Metallic powder coating color
- Hammer tone color powder coating
- Texture color powder coating powder
Textures include sand grain, hammer, silk pattern, sand textured,
marble,metallic, wood, multi-color.
PHYSICAL PROPERTIES
Coating film technical data | Curing conditions | 180°C/20min, 190°C/15min, 200°C/10min |
Impact resistance (drop hammer) | 50kg.cm pass |
Pencil hardness | H-2H |
Gloss (60°gauge head) | High gloss type≥85% Semi gloss type:51-84%
Low gloss type:50-15% Matt type:<14% |
Adhesion (cross cut test) | 1mm 6x6 0 grade |
Bending test (tapering spindle) | 3mm pass |
Salt Spray Test | >500 hours |
Humidity resistance | >1,000 hours |
